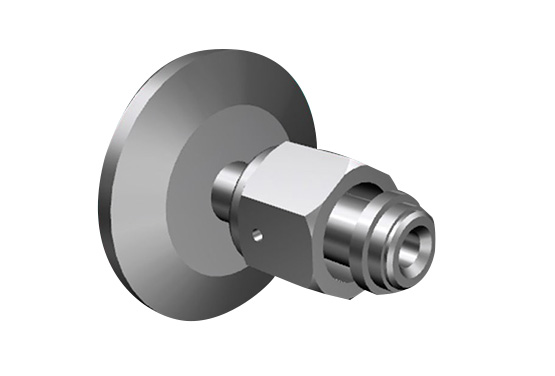

NW-VCR转换接头
截面图:
详细信息
下载
| Model No | NW16-FVCR6 | NW16-FVCR13 | NW25-FVCR6 | NW25-FVCR13 | NW40-FVCR6 | NW40-FVCR13 | NW50-FVCR6 | NW50-FVCR13 |
| A | 30 | 30 | 40 | 40 | 55 | 55 | 75 | 75 |
| B | 4.4 | 10.4 | 4.4 | 10.4 | 4.4 | 10.4 | 4.4 | 10.4 |
| L | 37 | 41.9 | 37 | 41.9 | 37 | 41.9 | 37 | 41.9 |
| FVCR | 1/4″ | 1/2″ | 1/4″ | 1/2″ | 1/4″ | 1/2″ | 1/4″ | 1/2″ |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| Parts No | DA0057 | DA0058 | DA0059 | DA0060 | DA0061 | DA0062 | DA0063 | DA0064 |
