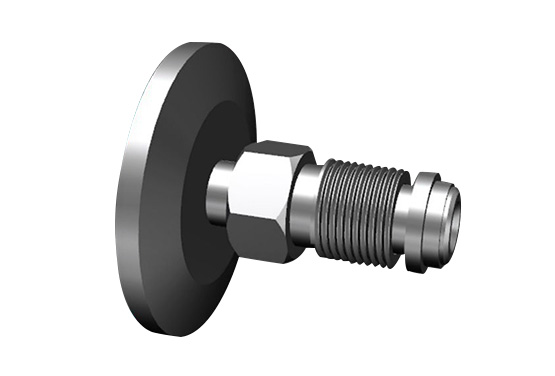

NW-VCR转换接头
截面图:
详细信息
下载
| Model No | NW16-MVCR6 | NW16-MVCR13 | NW25-MVCR6 | NW25-MVCR13 | NW40-MVCR6 | NW40-MVCR13 | NW50-MVCR6 | NW50-MVCR13 |
| A | 30 | 30 | 40 | 40 | 55 | 55 | 75 | 75 |
| B | 4.4 | 10.4 | 4.4 | 10.4 | 4.4 | 10.4 | 4.4 | 10.4 |
| L | 37 | 41.9 | 37 | 41.9 | 37 | 41.9 | 37 | 41.9 |
| MVCR | 1/4″ | 1/2″ | 1/4″ | 1/2″ | 1/4″ | 1/2″ | 1/4″ | 1/2″ |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| Parts No | DA0049 | DA0050 | DA0051 | DA0052 | DA0053 | DA0054 | DA0055 | DA0056 |
