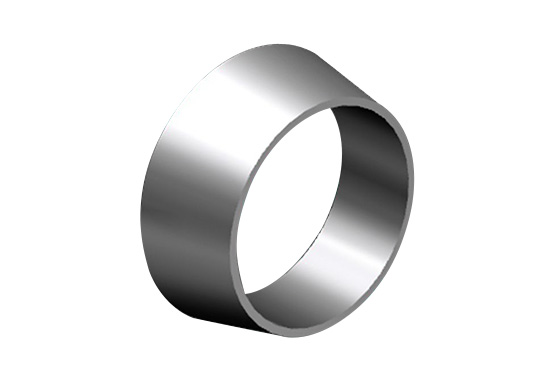

后卡套
截面图:
详细信息
下载
| METRIC（公制） | |||||||
| Model No | Back-2 | Back-3 | Back-4 | Back-6 | Back-8 | Back-10 | Back-12 |
| Tube A(mm) | 2 | 3 | 4 | 6 | 8 | 10 | 12 |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| Parts No | DA0065 | DA0066 | DA0067 | DA0068 | DA0069 | DA0070 | DA0071 |
| Model No | Back-14 | Back-15 | Back-16 | Back-18 | Back-20 | Back-22 | Back-25 |
| Tube A(mm) | 14 | 15 | 16 | 18 | 20 | 22 | 25 |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| Parts No | DA0072 | DA0073 | DA0074 | DA0075 | DA0076 | DA0077 | DA0078 |
| METRIC（英制） | |||||||
| Model No | Back-1/16 | Back-1/8 | Back-3/16 | Back-1/4 | Back-5/16 | Back-3/8 | Back-1/2 |
| OD A(inch) | 1/16″ | 1/8″ | 3/16″ | 1/4″ | 5/16″ | 3/8″ | 1/2″ |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| Parts No | DA0079 | DA0080 | DA0081 | DA0082 | DA0083 | DA0084 | DA0085 |
| Model No | Back-5/8 | Back-3/4 | Back-7/8 | Back-1 | Back-1 1/4 | Back-1 1/2 | Back-2 |
| OD A(inch) | 5/8″ | 3/4″ | 7/8″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| Parts No | DA0086 | DA0087 | DA0088 | DA0089 | DA0090 | DA0091 | DA0092 |
