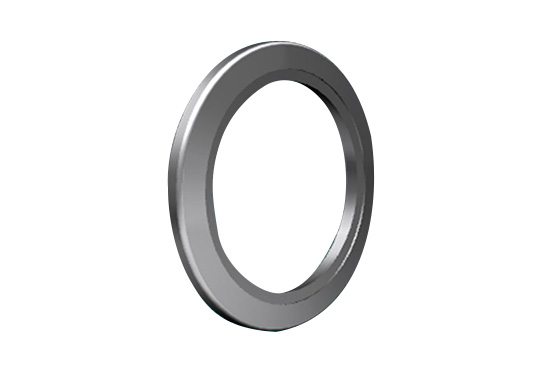

NW焊接片
截面图:
| Model No | NW16 |
| NW25 |
| NW40 |
| NW50 |
|
| TYPE | a | b | a | a | a | a | a | b |
| A | 30 | 30 | 40 | 40 | 55 | 55 | 75 | 75 |
| B | 17.2 | 17.2 | 26.2 | 26.2 | 41.2 | 41.2 | 52.2 | 52.2 |
| C | 16 | 17.5 | 25 | 23 | 40 | 37 | 50 | 54.9 |
| D | 20.2 | 21.9 | 28.2 | 27.4 | 44.7 | 42.9 | 55.2 | 60.7 |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| Parts No | DK0025 | DK0026 | DK0027 | DK0028 | DK0029 | DK0030 | DK0031 | DK0032 |
