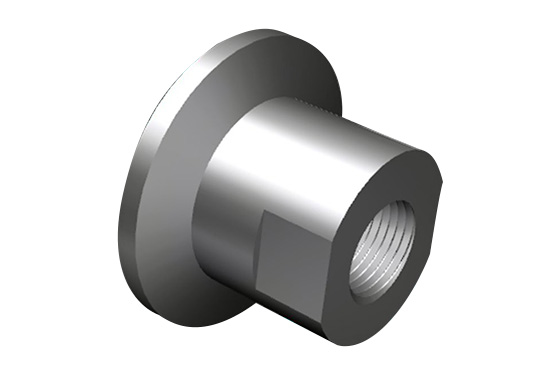

NW内螺纹过渡管接头

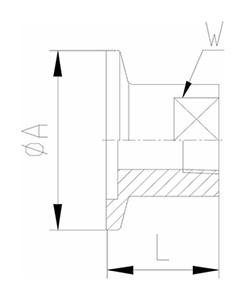

截面图:
详细信息
下载
| ThreadTrpe:NPT | ||||||||
| Model No | NW16-F1/8 | NW16-F1/4 | NW25-F1/8 | NW25-F1/4 | NW40-F1/8 | NW40-F1/4 | NW50-F1/8 | NW50-F1/4 |
| A | 30 | 30 | 40 | 40 | 55 | 55 | 75 | 75 |
| L | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| W | 17 | 17 | 19 | 19 | 32 | 32 | 46 | 46 |
| Tread | NPT1/8″ | NPT1/4″ | NPT1/8″ | NPT1/4″ | NPT1/8″ | NPT1/4″ | NPT1/8″ | NPT1/4″ |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| Parts No | DA0217 | DA0218 | DA0219 | DA0220 | DA0221 | DA0222 | DA0223 | DA0224 |
| ThreadTrpe:PT | ||||||||
| Model No | NW16-F1/8 | NW16-F1/4 | NW25-F1/8 | NW25-F1/4 | NW40-F1/8 | NW40-F1/4 | NW50-F1/8 | NW50-F1/4 |
| A | 30 | 30 | 40 | 40 | 55 | 55 | 75 | 75 |
| L | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| W | 17 | 17 | 19 | 19 | 32 | 32 | 46 | 46 |
| Tread | PT1/8″ | PT1/4″ | PT1/8″ | PT1/4″ | PT1/8″ | PT1/4″ | PT1/8″ | PT1/4″ |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| Parts No | DA0209 | DA0210 | DA0211 | DA0212 | DA0213 | DA0214 | DA0215 | DA0216 |
