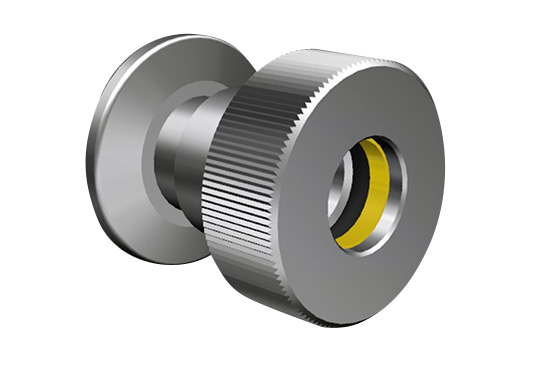

NW规管转换接头
截面图:
详细信息
下载
| Model No | NW16-PG15 | NW16-PG18 | NW25-PG15 | NW25-PG18 | NW40-PG15 | NW40-PG18 | NW50-PG15 | NW50-PG18 |
| A | 30 | 30 | 40 | 40 | 55 | 55 | 75 | 75 |
| B | 38 | 40 | 38 | 40 | 38 | 40 | 38 | 40 |
| b | 16 | 19 | 16 | 19 | 16 | 19 | 16 | 19 |
| L | 43 | 58 | 43 | 58 | 43 | 58 | 43 | 58 |
| TUSE SIZE | 15 | 18 | 15 | 18 | 15 | 18 | 15 | 18 |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| Parts No | DA0173 | DA0174 | DA0175 | DA0176 | DA0177 | DA0178 | DA0179 | DA0180 |
