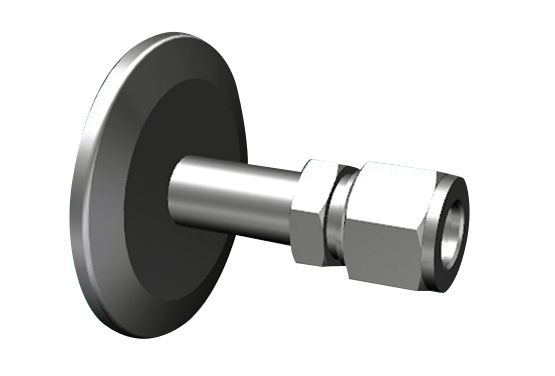

NW卡套转换接头

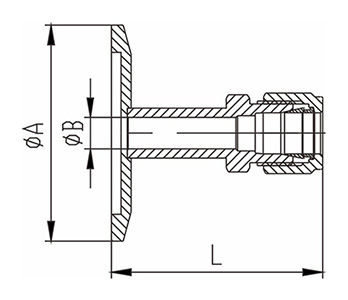

截面图:
详细信息
下载
| Model No | NW16-1/4 | NW16-1/2 | NW25-1/4 | NW25-1/2 | NW40-1/4 | NW40-1/4 | NW50-1/2 | NW50-1/2 |
| A | 30 | 30 | 40 | 40 | 55 | 55 | 75 | 75 |
| B | 4.8 | 10.8 | 4.8 | 10.8 | 4.8 | 10.8 | 4.8 | 10.8 |
| L | 36.6 | 45 | 36.6 | 54.3 | 36.6 | 54.3 | 36.6 | 54.3 |
| Swagelok | 1/4″ | 1/2″ | 1/4″ | 1/2″ | 1/4″ | 1/2″ | 1/4″ | 1/2″ |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| Parts No | DA0161 | DA0162 | DA0163 | DA0164 | DA0165 | DA0166 | DA0167 | DA0168 |
