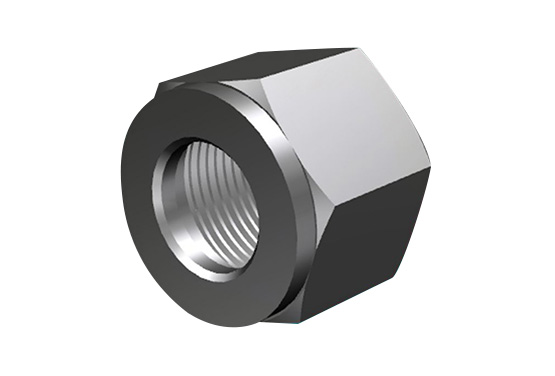

螺母

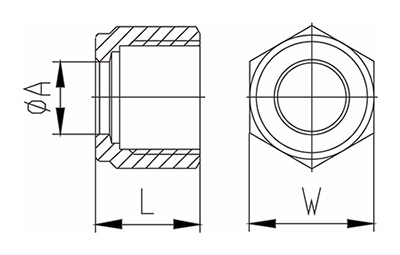

截面图:
详细信息
下载
| INCH（英制） | |||||||
| Model No | Nut-1/16 | Front-1/8 | Front-3/16 | Front-1/4 | Front-5/16 | Front-3/8 | Front-1/2 |
| Tube A(inch) | 1/16″ | 1/8″ | 3/16″ | 1/4″ | 5/16″ | 3/8″ | 1/2″ |
| W(inch) | 5/16″ | 7/16″ | 1/2″ | 9/16″ | 5/8″ | 11/16″ | 7/8″ |
| L(inch) | 0.31 | 0.47 | 0.47 | 0.5 | 0.53 | 0.56 | 0.69 |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| Parts No | DA0137 | DA0138 | DA0139 | DA0140 | DA0141 | DA0142 | DA0143 |
| Model No | Front-5/8 | Front-3/4 | Front-7/8 | Front-1 | Front-1 1/4 | Front-1 1/2 | Front-2 |
| Tube A(inch) | 5/8″ | 3/4″ | 7/8″ | 1″ | 1 1/4″ | 1 1-2″ | 2″ |
| W(inch) | 1″ | 1 1/8″ | 1 1/4″ | 1 1/2″ | 1 7/8″ | 2 1/4″ | 3″ |
| L(inch) | 0.69 | 0.69 | 0.69 | 0.81 | 1.25 | 1.5 | 2.06 |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| Parts No | DA0144 | DA0145 | DA0146 | DA0147 | DA0148 | DA0149 | DA0150 |
| METRIC（公制） | ||||||||
| Model No | Nut-2 | Front-3 | Front-4 | Front-6 | Front-8 | Front-10 | Front-12 | Front-14 |
| Tube A(mm) | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 |
| W(mm) | 12 | 12 | 12 | 14 | 16 | 19 | 22 | 25 |
| L(mm) | 11.9 | 11.9 | 11.9 | 12.7 | 13.5 | 15.1 | 17.4 | 17.4 |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| Parts No | DA0121 | DA0122 | DA0123 | DA0124 | DA0125 | DA0126 | DA0127 | DA0128 |
| Model No | Front-15 | Front-16 | Front-18 | Front-20 | Front-22 | Front-25 | Front-38 | Front-50 |
| Tube A(mm) | 15 | 16 | 18 | 20 | 22 | 25 | 38 | 50 |
| W(mm) | 25 | 25 | 30 | 32 | 32 | 38 | 60 | 3 inch |
| L(mm) | 17.4 | 17.4 | 17.4 | 17.4 | 17.4 | 20.6 | 40.6 | 54 |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| Parts No | DA0129 | DA0130 | DA0131 | DA0132 | DA0133 | DA0134 | DA0135 | DA0136 |
