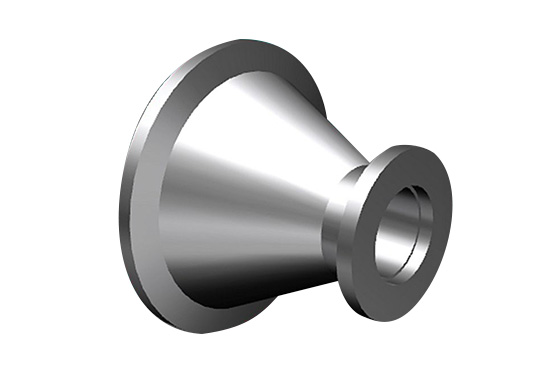

NW锥度变径接头

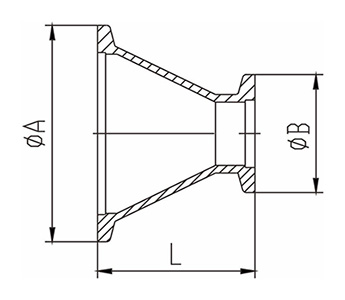

截面图:
详细信息
下载
| Model No | NW25/NW16 | NW40/NW16 | NW40/NW25 | NW50/NW16 | NW50/NW25 | NW50/NW40 |
| A | 40 | 55 | 55 | 75 | 75 | 75 |
| B | 30 | 30 | 40 | 30 | 40 | 55 |
| L | 40 | 40 | 40 | 40 | 40 | 40 |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| Parts No | DA0029 | DA0030 | DA0031 | DA0032 | DA0033 | DA0034 |
