NW卡箍

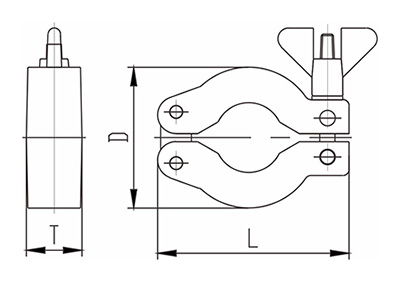

截面图:
详细信息
下载
| Model No | NW10/16 | NW25 | NW40 | NW50 |
| D | 45 | 55 | 70 | 95 |
| L | 62 | 73 | 90 | 113 |
| T | 16 | 16 | 16 | 20 |
| Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Parts No | DK0093 | DK0094 | DK0095 | DK0096 |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| Parts No | DK0097 | DK0098 | DK0099 | DK0100 |
