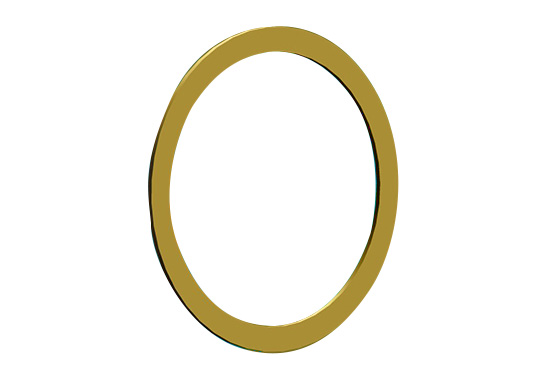

CF铜垫片
截面图:
详细信息
下载
| CF铜垫片 | |||||||||
| Model No | CF16 | CF25 | CF35 | CF50 | CF63 | CF100 | CF150 | CF200 | CF250 |
| A | 21.3 | 35 | 48.2 | 61.6 | 82.4 | 120.5 | 171.3 | 222.1 | 272.7 |
| B | 16.3 | 25.6 | 39 | 52 | 63.8 | 102 | 152.8 | 203.6 | 254 |
| T | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Material | copper | copper | copper | copper | copper | copper | copper | copper | copper |
| Parts No | DC0088 | DC0089 | DC0090 | DC0091 | DC0092 | DC0093 | DC0094 | DC0095 | DC0096 |
