ISO-盲板

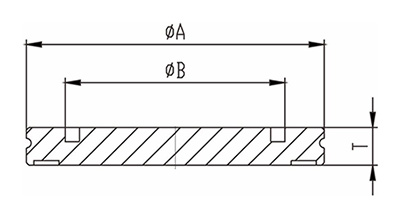

截面图:
| ISO盲板 |
|
|
|
|
|
|
|
|
|
| Model No | ISO63 | ISO80 | ISO100 | ISO160 | ISO200 | ISO250 | ISO320 | ISO400 | ISO500 |
| A | 95 | 110 | 130 | 180 | 240 | 290 | 370 | 450 | 550 |
| B | 70 | 83 | 102 | 153 | 213 | 261 | 318 | 400 | 501 |
| T | 12 | 12 | 12 | 12 | 12 | 12 | 17 | 17 | 17 |
| Material | 304S.S | 304S.S | 304S.S | 304S.S | 304S.S | 304S.S | 304S.S | 304S.S | 304S.S |
| Parts No | DI0010 | DI0011 | DI0012 | DI0013 | DI0014 | DI0015 | DI0016 | DI0017 | DI0018 |
