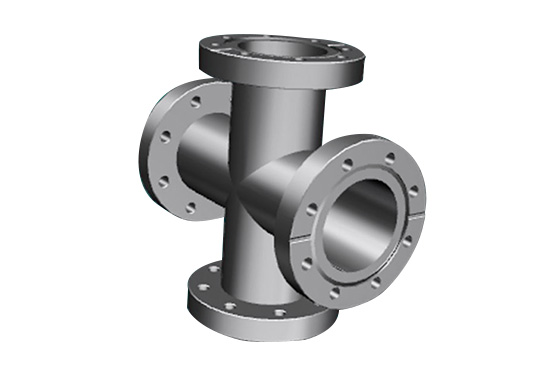

十字形四通配管

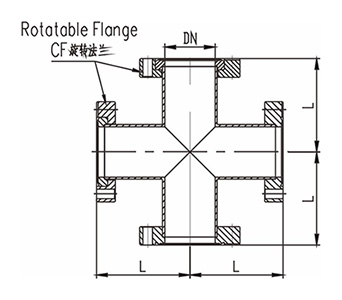

截面图:
| CF四通 |
|
|
|
|
|
|
|
| Model No | CF16 | CF35 | CF50 | CF63 | CF100 | CF150 | CF200 |
| DN | 16 | 35 | 50 | 63 | 100 | 150 | 200 |
| L | 40 | 65 | 88 | 88 | 108 | 138 | 208 |
| Tube size | 19.05*1.65 | 38.1*1.65 | 53*1.65 | 66*1.65 | 104*2.11 | 154*2.11 | 204*2.11 |
| Material | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S | 304 S.S |
| Parts No | DC0118 | DC0119 | DC0120 | DC0121 | DC0122 | DC0123 | DC0124 |
